Hot Water Heating Systems - Online Design Application, Imperial Units
Online design tool for hot water heating systems.
Sponsored Links
This tool can be used to design hot water heating systems.
How to Use
- Make a sketch of the system - something similar to the default sketch below. Custom drawings can be linked to the application - any global (http://..) or local (file://..) url should work
- Tag the sections and add them to the hierarchical application structure below (after reset)
- Add input data - power, preliminary dimensions, lengths, minor coefficients, temperature drop, and so on for each section
- Modify the piping dimensions to achieve reasonable values for velocities and pressure drops
- Select pump - the pump pressure must be larger than the highest accumulated pressure loss in the system
- Balance the system - start with the endpoints - add balancing pressures until the pump pressures in the end points equals zero. Add balancing pressure in other sections if required.
- Save the data file to your computer/network
- dimensions, minor loss coefficients, viscosity, density, roughness, specific heat
Important! - this calculation is for the flow OR the return piping system. If the flow and return piping systems are more or less identical - as in the default example above - the total pressure loss through the system for the pump to handle is 2 times the calculated (as indicated in the graph).
If the flow and the return system are different - like with a reversed return system - then the flow and the return systems must be calculated separately. The total pressure loss for the pump to handle will be the summarized pressure loss for the flow and return system.
- Note! - Since only half of the system is calculated - use only half the minor loss coefficients specified by suppliers in connection points between flow and return systems - typical in heating elements and/or in the central heater and pump.
- When selecting balancing valves - keep the flow but double the calculated balancing pressure drop for systems with identical flow and return piping - and summarize if the piping is different.
Sponsored Links
Related Topics
-
Heating
Heating systems - capacity and design of boilers, pipelines, heat exchangers, expansion systems and more.
Related Documents
-
ANSI Schedule 40 Steel Pipes - Dimensions
Internal and external diameters, areas, weights, volumes and number of threads for ANSI schedule 40 steel pipes. -
ANSI Schedule 80 Steel Pipes - Dimensions
Internal and external diameters, areas, weights, volumes and number of threads for schedule 80 steel pipes. -
ASME/ANSI B36.10/19 - Carbon, Alloy and Stainless Steel Pipes - Dimensions
Pipe sizes, inside and outside diameters, wall thickness, schedules, moment of inertia, transverse area, weight of pipe filled with water - U.S. Customary Units. -
ASME/ANSI B36.10/19 - Carbon, Alloy and Stainless Steel Pipes - Dimensions - Metric Units
Pipe sizes, inside and outside diameters, wall thickness, schedules, weight and weight of pipe filled with water - Metric Units. -
ASTM B88 - Seamless Copper Water Tubes - Dimensions
Water and gas copper tubes according ASTM B88 - type K, L and M - imperial units. -
ASTM F876 - PEX Tube - Dimensions
Dimensions of PEX tubes. -
BS 2871 Copper Tubes Table X, Y and Z - Working Pressures vs. Size
Working pressures of metric sized copper tubes according the BS (British Standard) 2871. -
Copper Tubes - Heat Carrying Capacities
Hot water heat carrying capacities in copper tubes type L. -
Design of Hot Water Heating Systems
Calculate gravity and forced circulating hot water heating systems. -
District Heating - Heat Capacity vs. Temperature
Water temperature and heating capacity. -

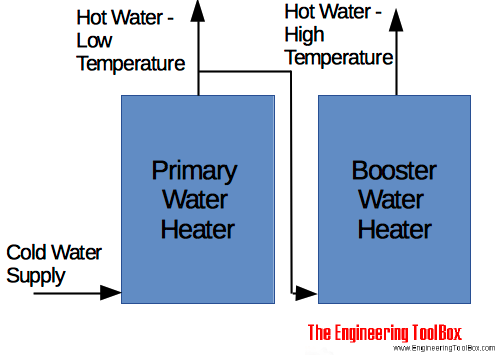

Domestic Hot Water Service Systems - Design Procedures
