Saturated Steam - Properties for Pressure in Bar

Saturated Steam Table with properties like boiling point, specific volume, density, specific enthalpy, specific heat and latent heat of vaporization.

For full table - rotate the screen!

Saturated Steam - Properties vs. Pressure - Bar
Absolute
Pressure		Boiling PointSpecific Volume (steam)Density (steam)Specific Enthalpy of Liquid Water
(sensible heat)		Specific Enthalpy of Steam
(total heat)		Latent heat of VaporizationSpecific Heat
(bar) (oC) (m3/kg) (kg/m3) (kJ/kg) (kcal/kg) (kJ/kg) (kcal/kg) (kJ/kg) (kcal/kg) (kJ/kg K)
0.02 17.51 67.006 0.015 73.45 17.54 2533.64 605.15 2460.19 587.61 1.8644
0.03 24.10 45.667 0.022 101.00 24.12 2545.64 608.02 2444.65 583.89 1.8694
0.04 28.98 34.802 0.029 121.41 29.00 2554.51 610.13 2433.10 581.14 1.8736
0.05 32.90 28.194 0.035 137.77 32.91 2561.59 611.83 2423.82 578.92 1.8774
0.06 36.18 23.741 0.042 151.50 36.19 2567.51 613.24 2416.01 577.05 1.8808
0.07 39.02 20.531 0.049 163.38 39.02 2572.62 614.46 2409.24 575.44 1.8840
0.08 41.53 18.105 0.055 173.87 41.53 2577.11 615.53 2403.25 574.01 1.8871
0.09 43.79 16.204 0.062 183.28 43.78 2581.14 616.49 2397.85 572.72 1.8899
0.1 45.83 14.675 0.068 191.84 45.82 2584.78 617.36 2392.94 571.54 1.8927
0.2 60.09 7.650 0.131 251.46 60.06 2609.86 623.35 2358.40 563.30 1.9156
0.3 69.13 5.229 0.191 289.31 69.10 2625.43 627.07 2336.13 557.97 1.9343
0.4 75.89 3.993 0.250 317.65 75.87 2636.88 629.81 2319.23 553.94 1.9506
0.5 81.35 3.240 0.309 340.57 81.34 2645.99 631.98 2305.42 550.64 1.9654
0.6 85.95 2.732 0.366 359.93 85.97 2653.57 633.79 2293.64 547.83 1.9790
0.7 89.96 2.365 0.423 376.77 89.99 2660.07 635.35 2283.30 545.36 1.9919
0.8 93.51 2.087 0.479 391.73 93.56 2665.77 636.71 2274.05 543.15 2.0040
0.9 96.71 1.869 0.535 405.21 96.78 2670.85 637.92 2265.65 541.14 2.0156
1 1) 99.63 1.694 0.590 417.51 99.72 2675.43 639.02 2257.92 539.30 2.0267
1.1 102.32 1.549 0.645 428.84 102.43 2679.61 640.01 2250.76 537.59 2.0373
1.2 104.81 1.428 0.700 439.36 104.94 2683.44 640.93 2244.08 535.99 2.0476
1.3 107.13 1.325 0.755 449.19 107.29 2686.98 641.77 2237.79 534.49 2.0576
1.4 109.32 1.236 0.809 458.42 109.49 2690.28 642.56 2231.86 533.07 2.0673
1.5 111.37 1.159 0.863 467.13 111.57 2693.36 643.30 2226.23 531.73 2.0768
1.6 113.32 1.091 0.916 475.38 113.54 2696.25 643.99 2220.87 530.45 2.0860
1.7 115.17 1.031 0.970 483.22 115.42 2698.97 644.64 2215.75 529.22 2.0950
1.8 116.93 0.977 1.023 490.70 117.20 2701.54 645.25 2210.84 528.05 2.1037
1.9 118.62 0.929 1.076 497.85 118.91 2703.98 645.83 2206.13 526.92 2.1124
2 120.23 0.885 1.129 504.71 120.55 2706.29 646.39 2201.59 525.84 2.1208
2.2 123.27 0.810 1.235 517.63 123.63 2710.60 647.42 2192.98 523.78 2.1372
2.4 126.09 0.746 1.340 529.64 126.50 2714.55 648.36 2184.91 521.86 2.1531
2.6 128.73 0.693 1.444 540.88 129.19 2718.17 649.22 2177.30 520.04 2.1685
2.8 131.20 0.646 1.548 551.45 131.71 2721.54 650.03 2170.08 518.32 2.1835
3 133.54 0.606 1.651 561.44 134.10 2724.66 650.77 2163.22 516.68 2.1981
3.5 138.87 0.524 1.908 584.28 139.55 2731.63 652.44 2147.35 512.89 2.2331
4 143.63 0.462 2.163 604.68 144.43 2737.63 653.87 2132.95 509.45 2.2664
4.5 147.92 0.414 2.417 623.17 148.84 2742.88 655.13 2119.71 506.29 2.2983
5 151.85 0.375 2.669 640.12 152.89 2747.54 656.24 2107.42 503.35 2.3289
5.5 155.47 0.342 2.920 655.81 156.64 2751.70 657.23 2095.90 500.60 2.3585
6 158.84 0.315 3.170 670.43 160.13 2755.46 658.13 2085.03 498.00 2.3873
6.5 161.99 0.292 3.419 684.14 163.40 2758.87 658.94 2074.73 495.54 2.4152
7 164.96 0.273 3.667 697.07 166.49 2761.98 659.69 2064.92 493.20 2.4424
7.5 167.76 0.255 3.915 709.30 169.41 2764.84 660.37 2055.53 490.96 2.4690
8 170.42 0.240 4.162 720.94 172.19 2767.46 661.00 2046.53 488.80 2.4951
8.5 172.94 0.227 4.409 732.03 174.84 2769.89 661.58 2037.86 486.73 2.5206
9 175.36 0.215 4.655 742.64 177.38 2772.13 662.11 2029.49 484.74 2.5456
9.5 177.67 0.204 4.901 752.82 179.81 2774.22 662.61 2021.40 482.80 2.5702
10 179.88 0.194 5.147 762.60 182.14 2776.16 663.07 2013.56 480.93 2.5944
11 184.06 0.177 5.638 781.11 186.57 2779.66 663.91 1998.55 477.35 2.6418
12 187.96 0.163 6.127 798.42 190.70 2782.73 664.64 1984.31 473.94 2.6878
13 191.60 0.151 6.617 814.68 194.58 2785.42 665.29 1970.73 470.70 2.7327
14 195.04 0.141 7.106 830.05 198.26 2787.79 665.85 1957.73 467.60 2.7767
15 198.28 0.132 7.596 844.64 201.74 2789.88 666.35 1945.24 464.61 2.8197
16 201.37 0.124 8.085 858.54 205.06 2791.73 666.79 1933.19 461.74 2.8620
17 204.30 0.117 8.575 871.82 208.23 2793.37 667.18 1921.55 458.95 2.9036
18 207.11 0.110 9.065 884.55 211.27 2794.81 667.53 1910.27 456.26 2.9445
19 209.79 0.105 9.556 896.78 214.19 2796.09 667.83 1899.31 453.64 2.9849
20 212.37 0.100 10.047 908.56 217.01 2797.21 668.10 1888.65 451.10 3.0248
21 214.85 0.095 10.539 919.93 219.72 2798.18 668.33 1878.25 448.61 3.0643
22 217.24 0.091 11.032 930.92 222.35 2799.03 668.54 1868.11 446.19 3.1034
23 219.55 0.087 11.525 941.57 224.89 2799.77 668.71 1858.20 443.82 3.1421
24 221.78 0.083 12.020 951.90 227.36 2800.39 668.86 1848.49 441.50 3.1805
25 223.94 0.080 12.515 961.93 229.75 2800.91 668.99 1838.98 439.23 3.2187
26 226.03 0.077 13.012 971.69 232.08 2801.35 669.09 1829.66 437.01 3.2567
27 228.06 0.074 13.509 981.19 234.35 2801.69 669.17 1820.50 434.82 3.2944
28 230.04 0.071 14.008 990.46 236.57 2801.96 669.24 1811.50 432.67 3.3320
29 231.96 0.069 14.508 999.50 238.73 2802.15 669.28 1802.65 430.56 3.3695
30 233.84 0.067 15.009 1008.33 240.84 2802.27 669.31 1793.94 428.48 3.4069

1) 1 bar abs = 0 bar gauge = 0.98692 atm = 100 kPa abs = Standard Atmospheric Pressure (IUPAC system)

  • Vacuum steam is the general term used for saturated steam at temperatures below 100°C.

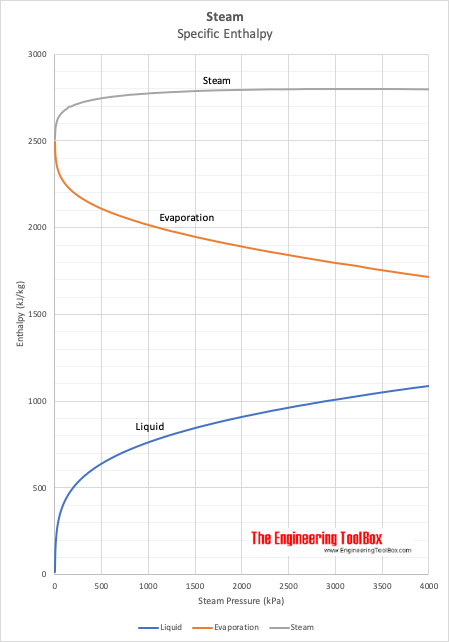

Steam - Enthalpy steam, evaporation and liquid vs. pressure chart

Steam evaporators used in industrial and waste water applications operates with pressures lower that the atmospheric pressure. In steam distribution system the pressure is almost always more than 0 bar gauge.

Example - Boiling Water at 100 oC, 0 bar (100 kPa) Atmospheric Pressure

At atmospheric pressure (0 bar g, absolute 1 bar ) water boils at 100 oC and 417.51 kJ of energy is required to heat 1 kg of water from 0 oC to evaporating temperature 100 oC.

Therefore the specific enthalpy of water at 0 bar g (absolute 1 bar ) and 100 oC is 417.51 kJ/kg.

Another 2257.92 kJ of energy is required to evaporate 1 kg of water at 100 oC into 1 kg of steam at 100 oC. Therefore at 0 bar g (absolute 1 bar) the specific enthalpy of vaporation is 2257.19 kJ/kg.

The total specific enthalpy for steam at 0 bar gauge is:

hs = (417.51 kJ/kg) + (2257.92 kJ/kg)

    = 2675.43 kJ/kg

Example - Boiling Water at 170 oC and 7 bar (700 kPa) Atmospheric Pressure

At 7 bar g (absolute 8 bar) the saturation temperature of water is 170.42 oC. More heat energy is required to raise its temperature to saturation point at 7 bar g than needed when the water is at atmospheric pressure. According the table 720.94 kJ is required to raise 1 kg of water from 0 oC to saturation temperature 170 oC.

The heat energy (enthalpy of evaporation) needed at 7 bar g to vaporize the water to steam is actually less than required at atmospheric pressure. The specific enthalpy of vaporization decreases with steam pressure. The evaporation heat is 2046.53 kJ/kg at 7 bar g.

  • Note! The specific volume of steam decreases with increased pressure - and the amount of heat energy distributed by the same volume increase. With higher pressure - more energy can be transferred in a steam distribution system.
