ASTM B306 - Copper Tubes for Drain, Waste and Vent - Dimensions and Working Pressures

Dimensions of copper tubes ASTM B306 Drain Waste and Vent - DWV

Sponsored Links

Copper tubes according ASTM 306 are used in soil, waste, vent, solar and storm drainage piping systems.

copper tubes dwv drain waste vent

Nominal Diameter (in)	Outside Diameter (in)	Inside Diameter (in)	Wall Thickness (in)	Cross Sectional Area of Bore (in²)	Mass (Weight) per unit Length (lb/ft)	Mass (Weight) with Water (lb/ft)
1 1/4	1.375	1.295	0.040	1.32	0.650	1.22
1 1/2	1.625	1.541	0.042	1.87	0.81	1.62
2	2.125	2.041	0.042	3.27	1.07	2.48
3	3.125	3.030	0.045	7.21	1.69	4.81
4	4.125	4.009	0.058	11.6	2.87	7.88
5	5.125	4.981	0.072	19.5	4.43	12.9
6	6.125	5.959	0.083	27.9	6.10	18.2

recommended for above ground and no pressure applications only
sweat fittings only
available only in hard type

1 in² = 645.2 mm²
1 lb/ft = 1.49 kg/m

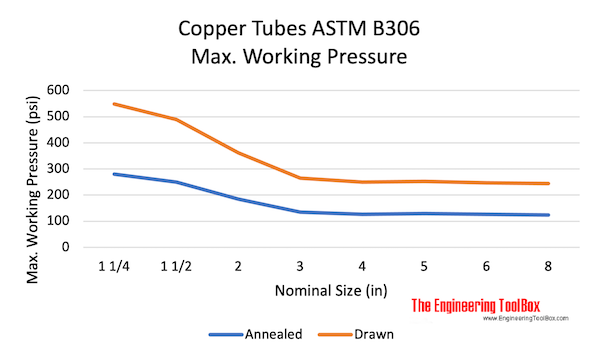

Working Pressure

Ratings based on service temperature max. 150^oF (66^oC)

yield strength S = 5100 psi (35 GPa) for annealed tube
yield strength S = 10000 psi (69GPa) for drawn tube

Nominal Size (in)	Max. Working Pressure (psi)
Nominal Size (in)	Annealed	Drawn
1 1/4	280	549
1 1/2	249	489
2	185	362
3	135	265
4	127	250
5	129	252
6	126	247
8	124	244
