Vacuum Pipe Lines - Pressure Drops

Vacuum pipes and pressure drops

Sponsored Links

Pressure drop in vacuum pipelines:

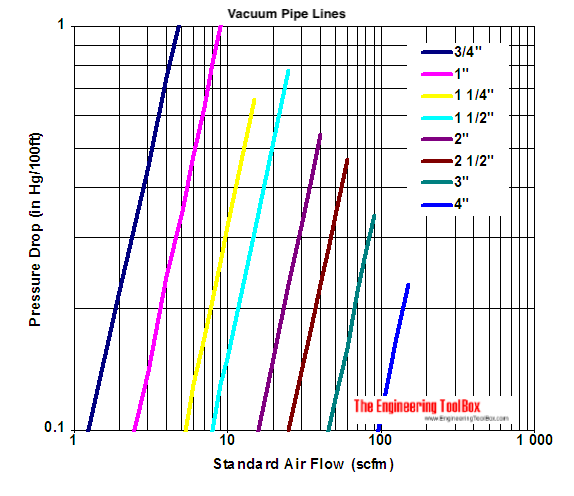

Air Flow - scfm - and Pressure Drop - in Hg/100 ft

Vacuum pipe line - pressure drop diagram - inHg and cfm

The diagram is based on initial vacuum pressure 20 in Hg (67% vacuum) and steel pipes schedule 40.

1 in Hg = 3.37 kPa
1 scfm = 0.472 nl/s

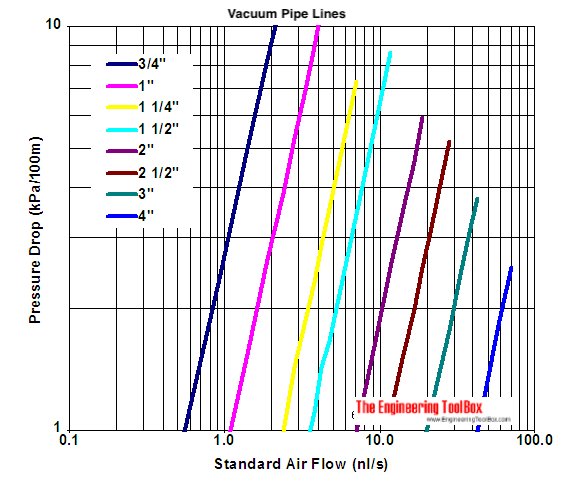

Air Flow - nl/s - and Pressure Drop - kPa/100 m

Vacuum pipe line - pressure drop diagram - l/s and kPa
