Electric Wire - Resistance

Electric resistance in wire made of Copper, Aluminum, Brass, Constantan, Nichrome, Platinum, Silver or Tungsten.

Electric resistance in

Aluminum
Brass
Constantan
Copper
Nichrome
Platinum
Silver
Tungsten

wire at 20 ^oC.

Resistivity and Conductivity - Temperature Coefficients for Common Materials

AWG Gauge

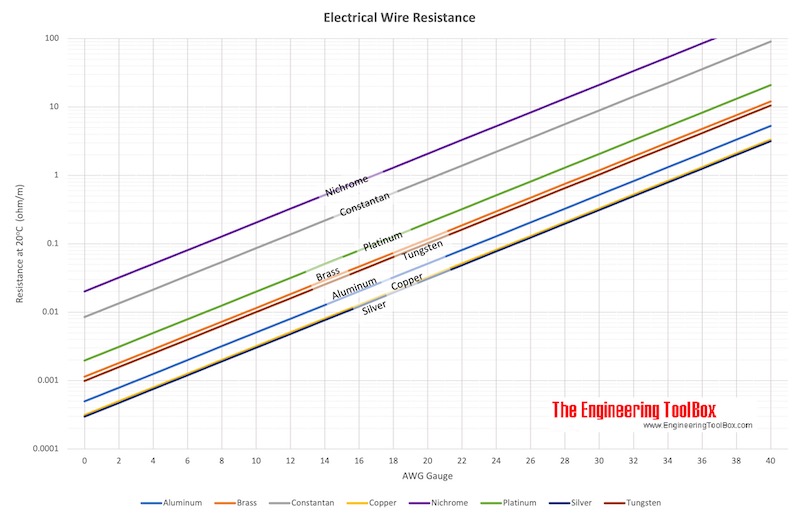

Resistance in electric wire - Copper, Aluminum, Brass, Constantan, Nichrome, Platinum, Silver and Tungsten - AWG Gauge

Download and print Electrical Wire Resistance chart

Diameter (mm)

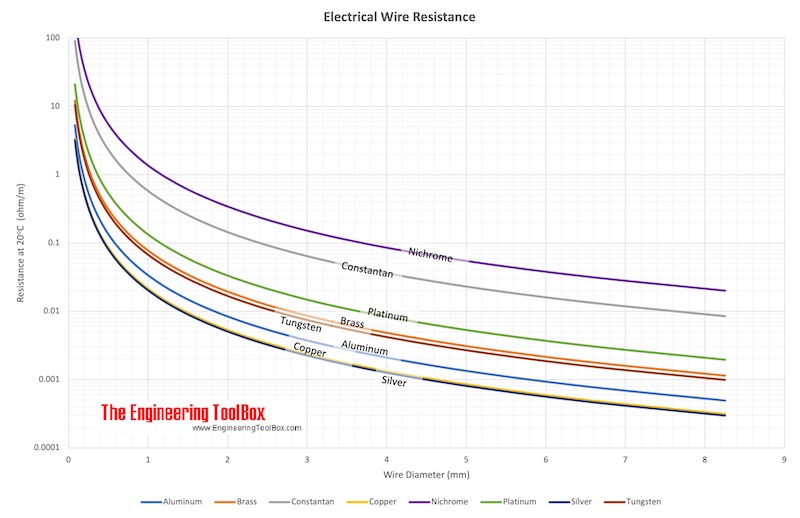

Resistance in electric wire - Copper, Aluminum, Brass, Constantan, Nichrome, Platinum, Silver and Tungsten (Diameter mm))

Download and print Electrical Wire Resistance chart

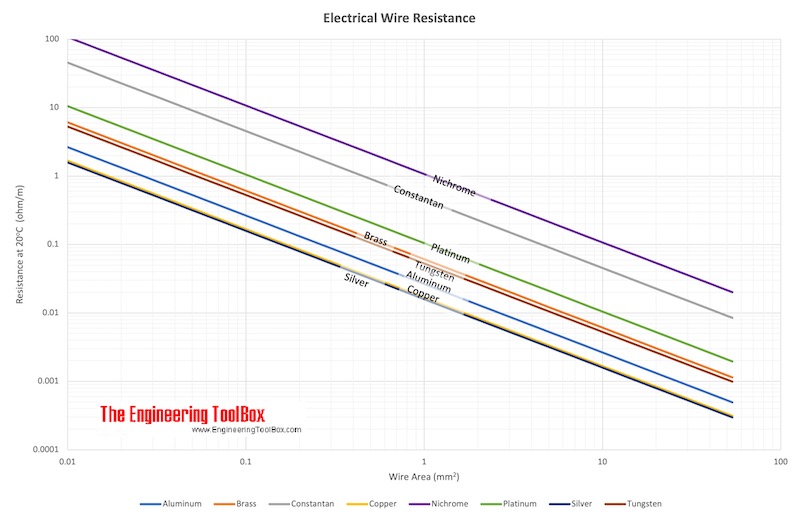

Square Area (mm²)

Resistance in electric wire - Copper, Aluminum, Brass, Constantan, Nichrome, Platinum, Silver and Tungsten (Diameter mm))

Download and print Electrical Wire Resistance chart
