Automotive 12 Volt Electric Wiring

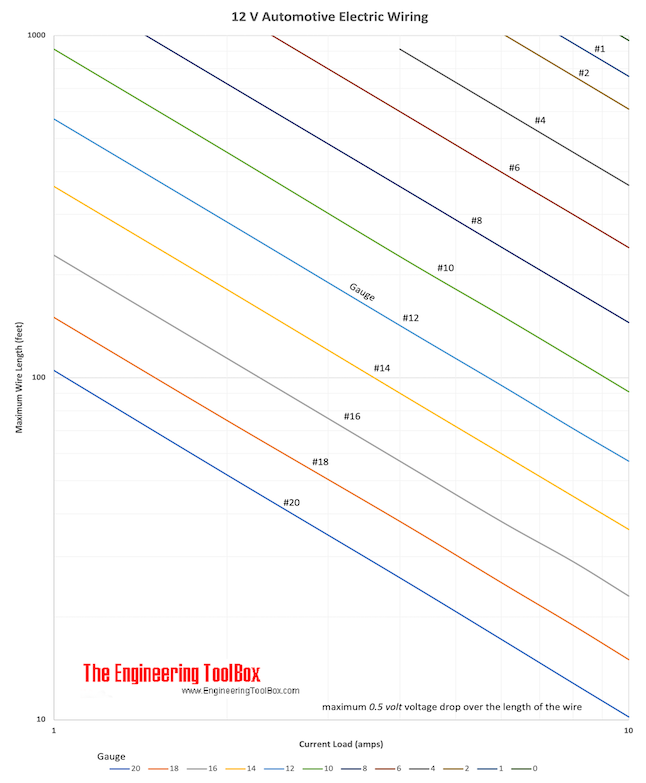

Current loads and maximum wire lengths in 12V electric systems are indicated in the diagrams below.

•   12 Volt Electric Wire - Length vs. Current Load - metric units

print 12V Automotive Electric Wiring Chart

• 1 ft (foot) = 0.3048 m

Current load - amps - and maximum wire length is based on maximum 0.5 volt voltage drop over the length of the wire.
