ABS Pipes - Pressure Ratings
Pressure ratings of ABS 1208, ABS 1210, ABS 1316 and ABS 2112.
Water pressure ratings at 23oC (73oF) for schedule 40 ABS (Acrylonitrile Butadiene Styrene) plastic pipes with material designation
- ABS 2112
- ABS 1316
- ABS 1210
- ABS 1208
are indicated in the diagram below.
ABS Pipes - Schedule 40
Pressure psi
Pressure bar

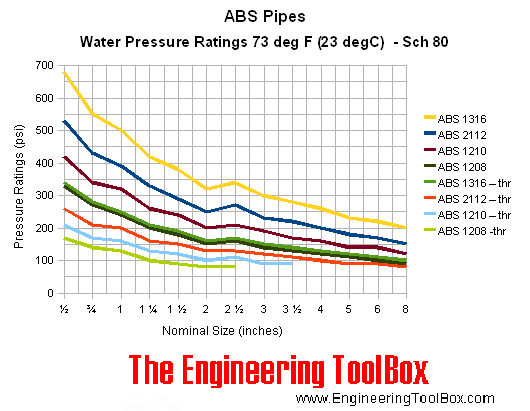

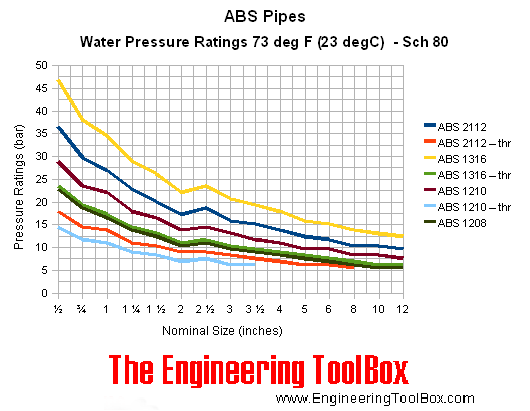

ABS Pipes - Schedule 80
Pressure psi
Pressure bar
- thr - threaded pipe
ABS Material Designation
ABS 1210
- Material: Type I, Grade 2
- Code classification: 5-2-2
- Hydrostatic design stress: 1000 psi
ABS 1316
- Material: Type I, Grade 3
- Code classification: 3-5-5
- Hydrostatic design stress: 1600 psi
ABS 1210
- Material: Type II, Grade 1
- Code classification: 4-4-5
- Hydrostatic design stress: 1250 psi
