PE (PolyEthylene) Pipes - Pressure Ratings vs. Size

Water pressure ratings for schedule 40 and schedule 80 Polyethylene plastic pipes

Sponsored Links

Water pressure ratings at 23^oC (73^oF) for PE plasic pipes

PE 2306
PE 3306
PE 3406
PE 2305
PE 1404

schedule 40 and 80 - outside diameter control - psi and bar - are indicated in the diagrams below.

PE Pipes - Schedule 40

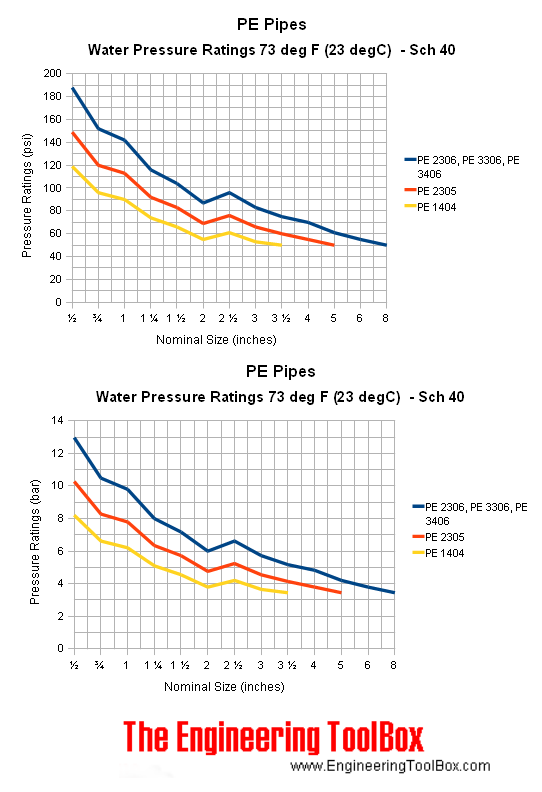

PE pipes schedule 40 - pressure ratings

PE Pipes - Schedule 80

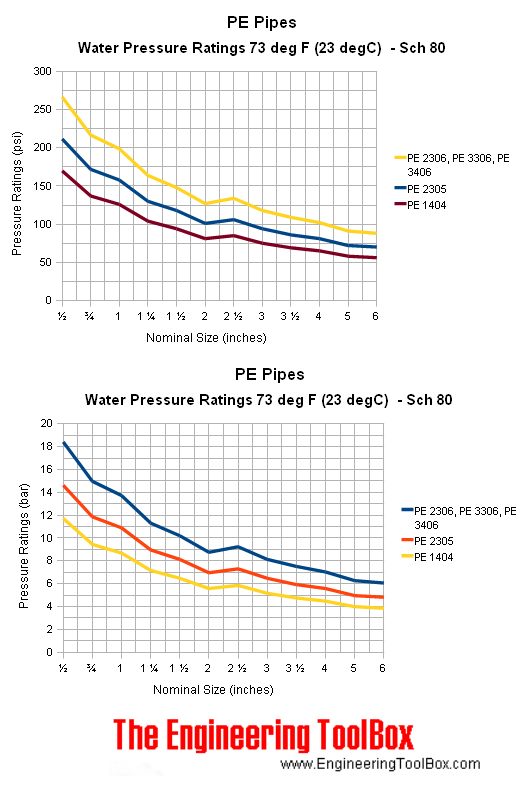

PE pipes schedule 80 - pressure ratings
