ANSI B16.5 - Steel Pipe Flanges - Pressure and Temperature Ratings - Group 1.2

Pressure (psig) and temperature ratings for steel pipe flanges and flanged fittings

Sponsored Links

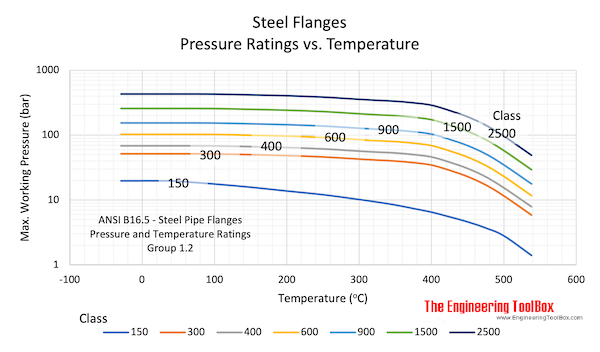

Pressure (psig) and temperature ratings for steel pipe flanges and flanged fittings according the American National Standard ANSI B16.5 - 1988 Group 1.2:

For full table - rotate the screen!

Working Pressure (bar)
Temperature (°C)	Class
Temperature (°C)	150	300	400	600	900	1500	2500
-29 - 38	19.8	51.7	68.9	103.4	155.1	258.6	430.9
50	19.5	51.7	68.9	103.4	155.1	258.6	430.9
100	17.7	51.5	68.7	103.0	154.6	257.6	429.4
150	15.8	50.2	66.8	100.3	150.5	250.8	418.1
200	13.8	48.6	64.8	97.2	145.8	243.2	405.4
250	12.1	46.3	61.7	92.7	139.0	231.8	386.2
300	10.2	42.9	57.0	85.7	128.6	214.4	357.1
325	9.3	41.4	55.0	82.6	124.0	206.6	344.3
350	8.4	40.0	53.4	80.0	120.1	200.1	333.5
375	7.4	37.8	50.4	75.7	113.5	189.2	315.3
400	6.5	34.7	46.3	69.4	104.2	173.6	289.7
425	5.5	28.8	38.4	57.5	86.3	143.8	239.7
450	4.6	23.0	30.7	46.0	69.0	115.0	191.7
475	3.7	17.1	22.8	34.2	51.3	85.4	142.4
500	2.8	11.6	15.4	23.2	34.7	57.9	96.5
538	1.4	5.9	7.9	11.8	17.7	29.5	49.2

The values in this table apply to materials Group 1.2

Pressure Ratings Group 1.1

For other Material Groups the Pressure-Temperature Ratings are different. Most carbon steels are only acceptable for temperatures below 800 F.
