Oil Pipes - Pressure Loss vs. Oil Flow

Pressure drop in oil pipes - viscosities ranging 100 - 600 Saybolt Universal Seconds.

NPS 1/2"

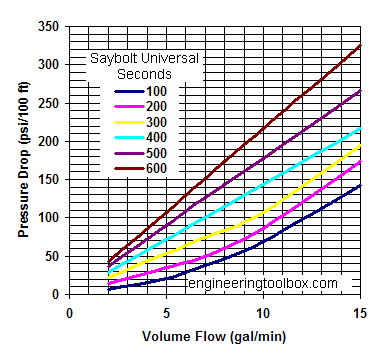

Oil pipe NPS 1/2 inch - pressure drop diagram

Inside Diameter 0.622 inches

1 gal (US)/min =6.30888x10^-5 m³/s = 0.227 m³/h = 0.06309 dm³(liter)/s = 2.228x10^-3 ft³/s = 0.1337 ft³/min = 0.8327 Imperial gal (UK)/min
1 psi (lb/in²) = 6,894.8 Pa (N/m²) = 6.895x10^-3 N/mm² = 6.895x10^-2 bar = 27.71 in H₂O at 62^oF (16.7^oC) = 703.1 mm H₂O at 62^oF (16.7^oC) = 2.0416 in mercury at 62^oF (16.7^oC) = 51.8 mm mercury at 62^oF (16.7^oC) = 703.6 kg/m² = 0.06895 atm = 2.307 Ft. H₂O = 16 ounces
1 ft (foot) = 0.3048 m

NPS 3/4"

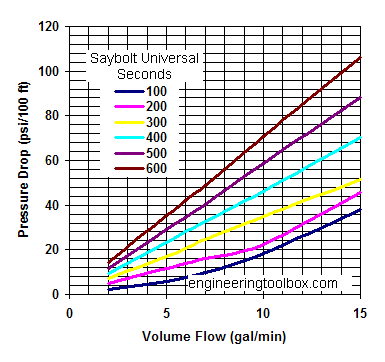

Oil pipe NPS 3/4 inch - pressure drop diagram

Inside Diameter 0.824 inches

NPS 1"

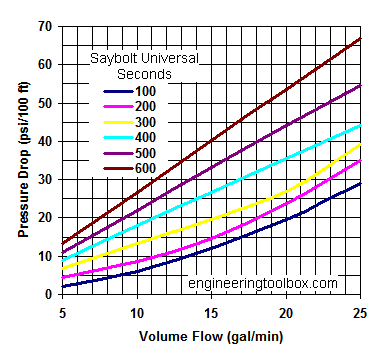

Oil pipe NPS 1 inch - pressure drop diagram

Inside Diameter 1.05 inches

NPS 1 1/2"

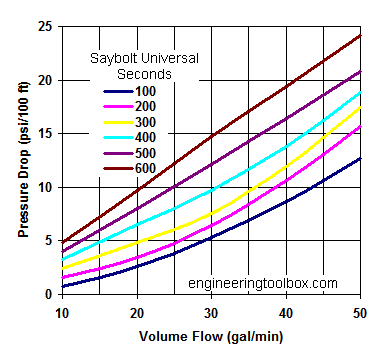

Oil pipe NPS 1 1/2 inch - pressure drop diagram

Inside Diameter 1.61 inches

NPS 2"

Oil pipe NPS 2 inch - pressure drop diagram

Inside Diameter 2.067 inches

NPS 4"

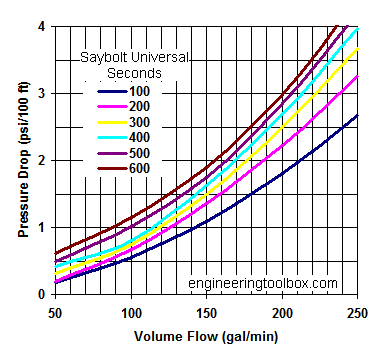

Oil pipe NPS 4 inch - pressure drop diagram

Inside Diameter 4.026 inches

NPS 6"

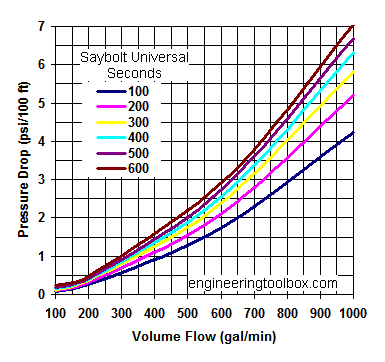

Oil pipe NPS 6 inch - pressure drop diagram

Inside Diameter 6.065 inches

NPS 8"

Oil pipe NPS 8 inch - pressure drop diagram

Inside Diameter 8.03 inches
