Thermoplastic Pipes - Temperature and Support Distance

Maximum space between supports for PVC, CPVC, PVDF and PP pipes

Sponsored Links

Temperatures and maximum distance between supports for pipes made of

PVDF - PolyVinylidene Fluoride
CPVC - Chlorinated Polyvinyl Chloride
PVC - Polyvinyl Chloride
PP - PolyPropylene

are indicated in the diagrams below.

PVC Pipes

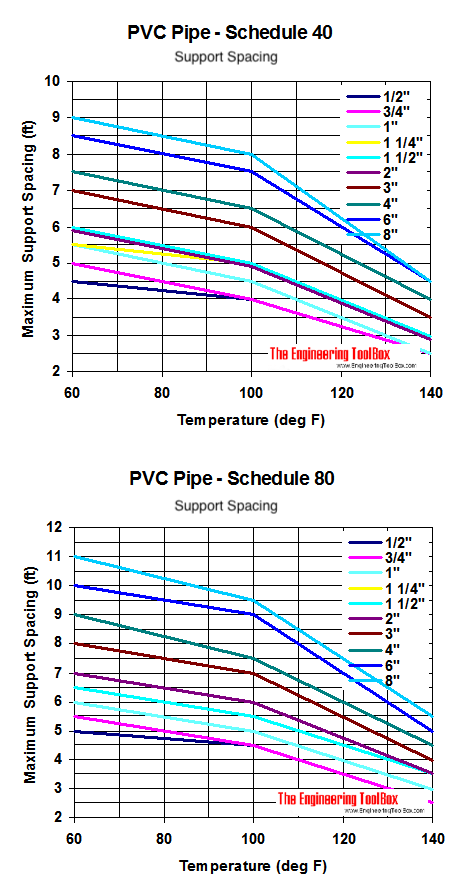

PVC pipes - temperature and maximum support spacing diagram

1 ft (foot) = 0.3048 m
T(^oF) = [T(^oC)](9/5) + 32

CPVC Pipes

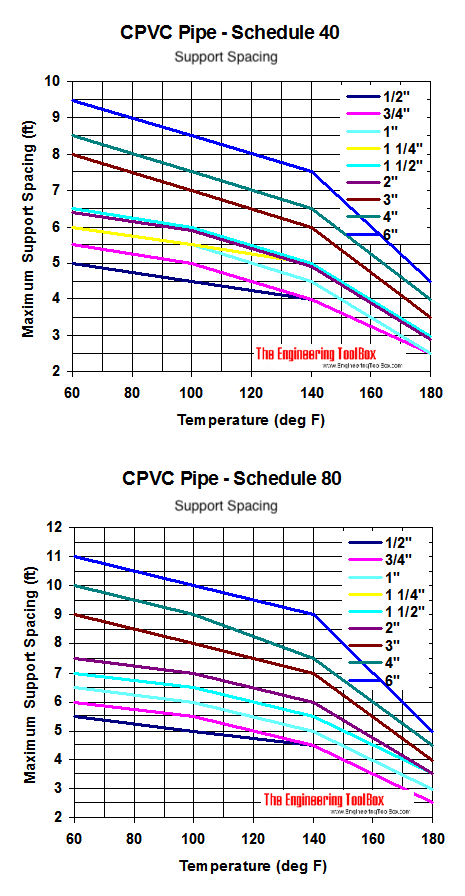

CPVC pipes, temperature and maximum support spacing diagram

PVDF Pipes

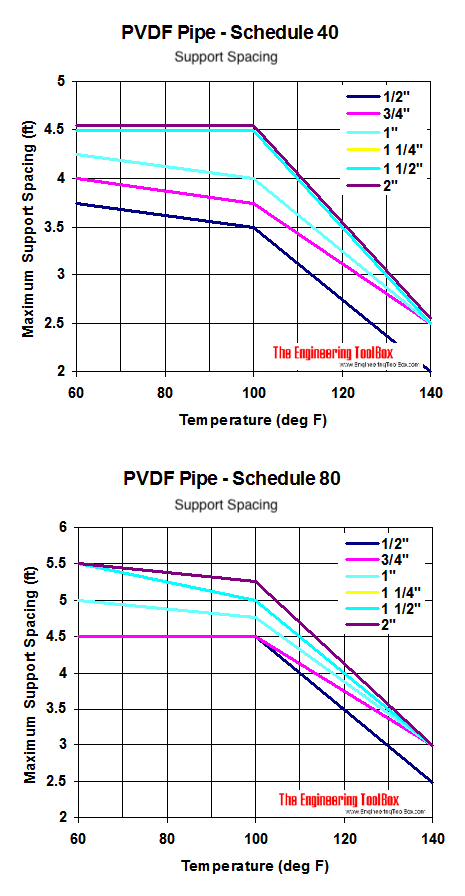

PVDF pipes, temperature and maximum support spacing diagram

PP Pipes

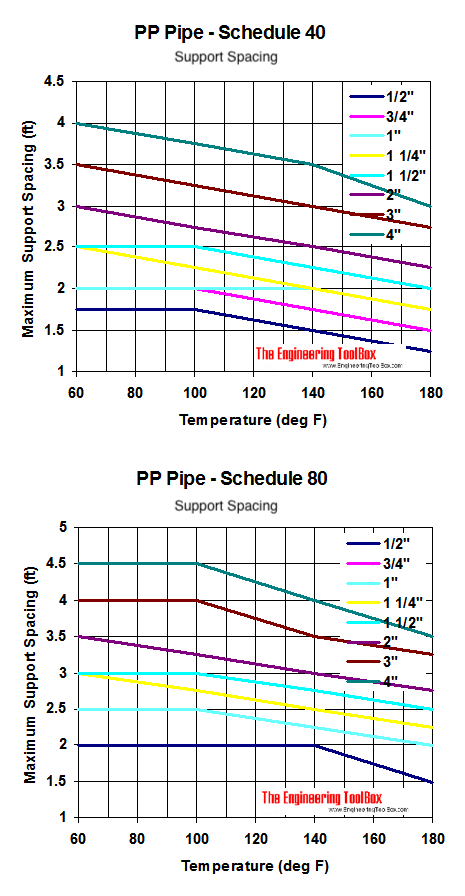

PP pipes, temperature and maximum support spacing diagram
