CPVC Pipes - Operating and Collapsing Pressures vs. Schedule and Size

Maximum operating and bursting pressures of CPVC - Chlorinated Poly (Vinyl Chloride) - piping systems.

Sponsored Links

Maximum operating and collapsing pressures at 70^oF (21^oC) for CPVC piping systems according

ASTM F441 / F441M - 02 Standard Specification for Chlorinated Poly(Vinyl Chloride) (CPVC) Plastic Pipe, Schedules 40 and 80
ASTM D2846 / D2846M - 06 Standard Specification for Chlorinated Poly(Vinyl Chloride) (CPVC) Plastic Hot- and Cold-Water Distribution Systems

are indicated in the diagram and table below:

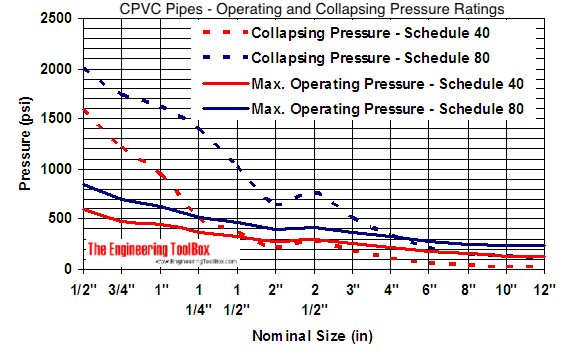

CPVC pipes - collapsing and operating pressure limits diagram

CPVC
Nominal Pipe Size (inches)	Collapse Pressure (psi)		Maximum Operating Pressure (psi)
Nominal Pipe Size (inches)	Schedule 40	Schedule 80	Schedule 40	Schedule 80
1/2	1605	2006	590	850
3/4	1219	1740	480	690
1	948	1628	450	630
1 1/4	511	1399	365	520
1 1/2	366	1034	330	470
2	213	653	275	400
2 1/2	276	758	300	420
3	179	521	260	370
4	108	334	220	320
6	54	214	180	280
8	37	146	160	250
10	27	125	140	230
12	22	116	130	230

1 psi (lb/in²) = 6,894.8 Pa (N/m²)

Note! The maximum operating pressures derates with temperature. At the maximum operating temperature for CPVC - 200^oF (93^oC) - the strength is derated to approximately 20% of the strength at 73^oF (23^oC).

Be aware that maximum operating pressures varies with the fittings design. Consult manufacturing data.
