Cast Iron Soil Pipes - Dimensions
Dimensions of cast iron soil pipes.
Sponsored Links

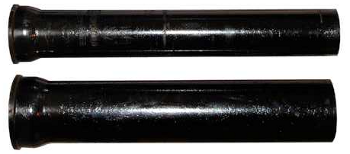

Dimensions of cast iron soil pipe and fittings:
Service Cast Iron
| Size (in) | Inside Diameter of Hub (in) | Outside Diameter of Barrel (in) | Inside Diameter barrel (in) |
|---|---|---|---|
| 2 | 2.94 | 2.30 | 1.96 |
| 3 | 3.94 | 3.30 | 2.96 |
| 4 | 4.94 | 4.30 | 3.94 |
| 5 | 5.94 | 5.30 | 4.94 |
| 6 | 6.94 | 6.30 | 5.94 |
| 8 | 9.25 | 8.38 | 7.94 |
| 10 | 11.38 | 10.50 | 9.94 |
| 12 | 13.50 | 12.50 | 11.94 |
Extra Heavy Cast Iron
| Size (in) | Inside Diameter of Hub (in) | Outside Diameter of Barrel (in) | Inside Diameter barrel (in) |
|---|---|---|---|
| 2 | 3.06 | 2.38 | 2.00 |
| 3 | 4.19 | 3.50 | 3.00 |
| 4 | 5.19 | 4.50 | 4.00 |
| 5 | 6.19 | 5.50 | 5.00 |
| 6 | 7.19 | 6.50 | 6.00 |
| 8 | 9.50 | 8.62 | 8.00 |
| 10 | 11.62 | 10.75 | 10.00 |
| 12 | 13.75 | 12.75 | 12.00 |
