Rectangular Air Ducts - Velocity Diagram

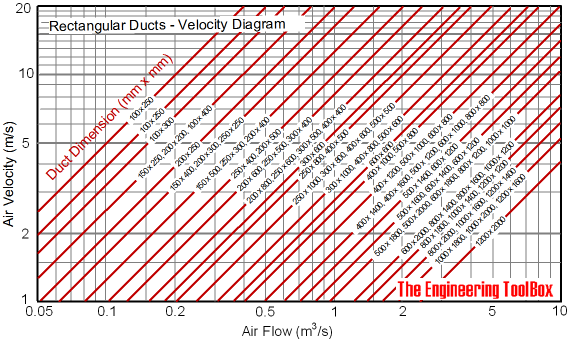

Air flow and air velocities in rectangular air ducts:

Example - Air Flow in Rectangular Air Duct

The air flow in a 200 x 250 mm rectangular air duct with air velocity 6 m/s can be estimated to aprox. 0.3 m³/s from the diagram above.
