Hydraulic Cylinder Area vs. Diameter

Typical hydraulic cylinders and acting area vs. cylinder diameter.

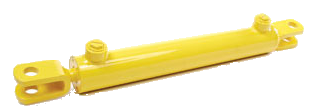

hydraulic cylinder

Areas for some typical hydraulic cylinders are indicated below

Hydraulic Cylinders - Area vs. Diameter
Cylinder Diameter
(in)
Cylinder Area
(in2)
1 0.785
1 1/2 1.77
2 3.14
2 1/2 4.91
3 7.07
3 1/2 9.62
4 12.6
4 1/2 15.9
5 19.6
5 1/2 23.8
6 28.3
6 1/2 33.2
  • 1 in (inch) = 25.4 mm
