Clean Rooms - Federal Standard 209
Clean rooms virtually free of contaminants like dust or bacteria.
Clean room maintained virtually free of contaminants like dust or bacteria are required for types of laboratory work and in the production of electronic and aerospace equipment precision parts.

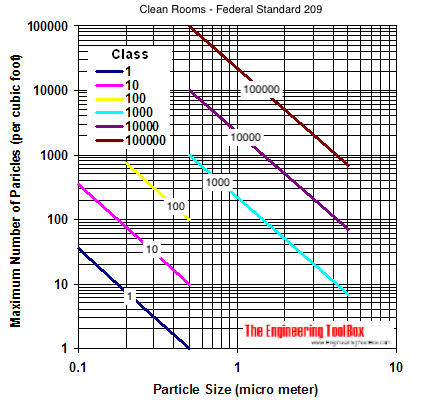

The air quality for clean rooms are described in Federal Standard 209 "Airborne Particulate Cleanliness Classes in Clean Rooms and Clean Zones" (A through D) where classes are named after the maximum number of particles of 0.5 micrometers or more in diameter which is acceptable in the air.
Class | Maximum Number of Particles in Air (particles per cubic foot air) | ||||
---|---|---|---|---|---|
Particle Size | |||||
0.1 μm | 0.2 μm | 0.3 μm | 0.5 μm | 5.0 μm | |
1 | 35 | 7.5 | 3 | 1 | |
10 | 350 | 75 | 30 | 10 | |
100 | 750 | 300 | 100 | ||
1000 | 1000 | 7 | |||
10000 | 10000 | 70 | |||
100000 | 100000 | 700 |
In a clean room rated as "Class 10000" there may not exists more than 10000 particles larger than 0.5 microns in a cubic foot of air.
Classes and their Typical Uses
- Class 1 & 10 - production laboratories for electronic integrated circuits ..
- Class 100 - production areas for photo labs, medical implants ..
- Class 10000 - production locales for TV tubes, hospital operating theaters ...
- Class 100000 - production of ball bearings

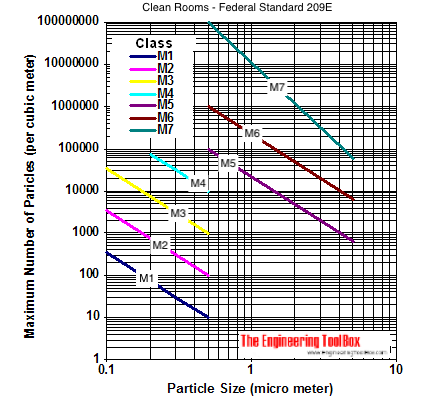

Federal Standard 209 E uses metric units and the classes are defined as:
For full table - rotate the screen!
Class | Maximum Number of Particles in Air (particles per volume unit) | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Particle Size | |||||||||||
0.1 μm | 0.2 μm | 0.3 μm | 0.5 μm | 5 μm | |||||||
SI | English | (m3) | (ft3) | (m3) | (ft3) | (m3) | (ft3) | (m3) | (ft3) | (m3) | (ft3) |
M 1 | 350 | 9.91 | 75.7 | 2.14 | 30.9 | 0.875 | 10.0 | 0.283 | |||
M 1.5 | 1 | 1240 | 35.0 | 265 | 7.50 | 106 | 3.00 | 35.3 | 1.00 | ||
M 2 | 3500 | 99.1 | 757 | 21.4 | 309 | 8.75 | 100 | 2.83 | |||
M 2.5 | 10 | 12400 | 350 | 2650 | 75.0 | 1060 | 30.0 | 353 | 10.0 | ||
M 3 | 35000 | 991 | 7570 | 214 | 3090 | 87.5 | 1000 | 28.3 | |||
M 3.5 | 100 | 26500 | 750 | 10600 | 300 | 3530 | 100 | ||||
M 4 | 75700 | 2140 | 30900 | 875 | 10000 | 283 | |||||
M 4.5 | 1000 | 35300 | 1000 | 247 | 7.00 | ||||||
M 5 | 100000 | 2830 | 618 | 17.5 | |||||||
M 5.5 | 10000 | 353000 | 10000 | 2470 | 70.0 | ||||||
M 6 | 1000000 | 28300 | 6180 | 175 | |||||||
M 6.5 | 100000 | 3350000 | 100000 | 24700 | 700 | ||||||
M 7 | 10000000 | 283000 | 61800 | 1750 |
Note! Federal Standard 209E is canceled and superseded by International Organization for Standardization (ISO) Standards - International Standards for Clean Rooms and associated controlled environments, ISO 14644.
