AWWA C151 - Ductile-Iron Pipe Centrifugally Cast - Dimensions

Dimensions of ductile-iron pipes according AWWA C151/A.21.51.

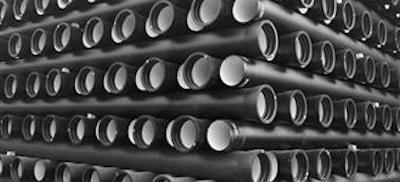

Ductile-iron pipe, AWWA C151

Typical dimensions of ductile-iron pipes according AWWA C151/A.21.51 Ductile-Iron Pipe, Centrifugally Cast.

AWWA C151 - Ductile-Iron Pipe Centrifugally Cast - Dimensions
Nominal Size
(inches)		Outside Diameter
(inches)
Pressure Class
150200250300350
Wall Thickness (inches)
3 3.96 0.25 0.25 0.25 0.25 0.25
4 4.80 0.26 0.26 0.26 0.26 0.26
6 6.90 0.25 0.25 0.25 0.25 0.25
8 9.05 0.27 0.27 0.27 0.27 0.27
10 11.10 0.29 0.29 0.29 0.29 0.29
12 13.20 0.31 0.31 0.31 0.31 0.31
14 15.30 0.33 0.33 0.33 0.33 0.33
16 17.40 0.34 0.34 0.34 0.34 0.34
18 19.50 0.35 0.35 0.35 0.35 0.35
20 21.60 0.36 0.36 0.36 0.36 0.39
24 25.80 0.38 0.38 0.38 0.41 0.44
30 32.00 0.39 0.39 0.43 0.47 0.51
36 38.30 0.43 0.43 0.48 0.53 0.58
42 44.50 0.47 0.47 0.53 0.59 0.65
48 50.80 0.51 0.51 0.58 0.65 0.72
54 57.56 0.57 0.57 0.65 0.73 0.81
