Lined Pipe Pressure Loss Diagram

Pressure drop diagrams for PTFE, PP, PFA and PVDF-lined pipes

Sponsored Links

The diagrams below indicates the pressure loss with water flow in PTFE-lined steel pipes schedule 40.

The pressure drop calculations are made with the D'Arcy-Weisbach Equation.

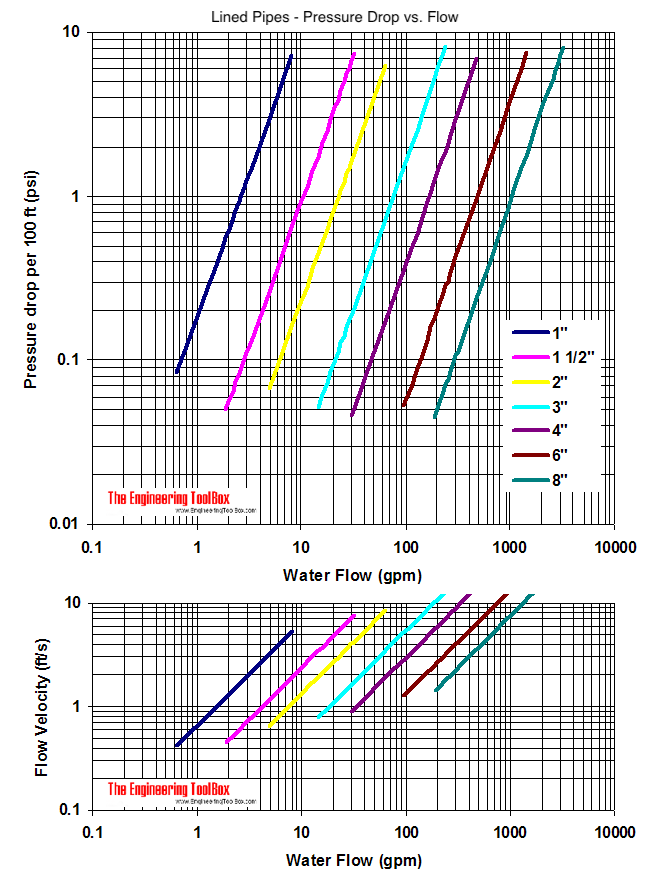

Pressure Drop - Imperial Units

Lined steel pipes - pressure drop diagram - imperial units - psi

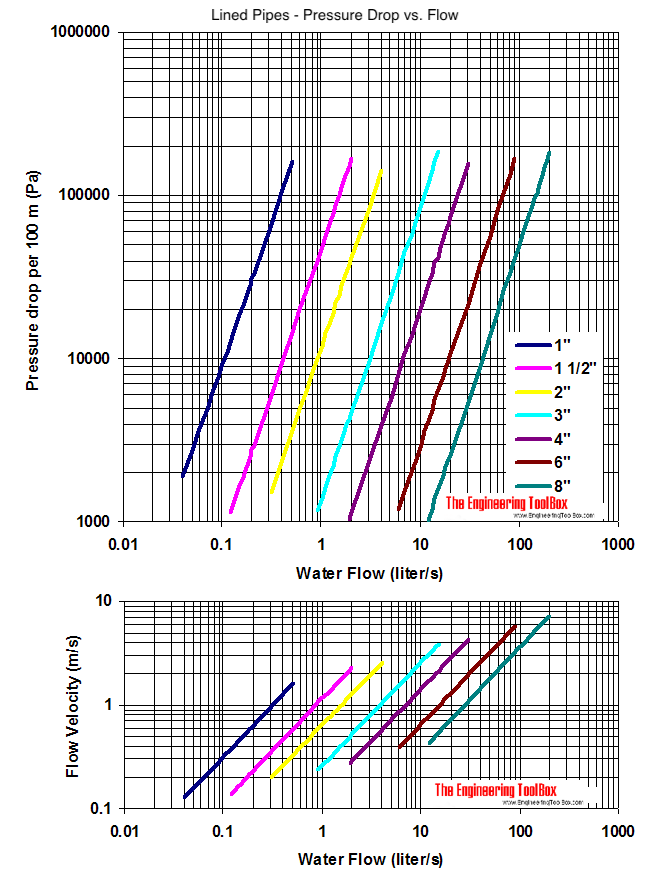

Pressure Drop - SI units

Lined steel pipes - pressure drop diagram - imperial units - pa

The diagram above is based on the inside thickness of schedule 40 steel pipes with PTFE as the lining material. Common thickness of other lining materials are indicated in the table below.

Common Thickness of Lining Material (inches)
Lining Material Pipe Diameter (inches)
1 1 1/2 2 3 4 6 8
PTFE*) 0.130 0.150 0.160 0.160 0.160 0.275 0.310
PP 0.135 0.160 0.175 0.175 0.210 0.220 0.220
PFA 0.113 0.114 0.114 0.130 0.150 0.145 0.140
PVDF 0.125 0.125 0.125 0.125 0.145 0.160 0.185

*) used in the diagrams above
