Orifices - Air Discharge

Air volume through orifices

Sponsored Links

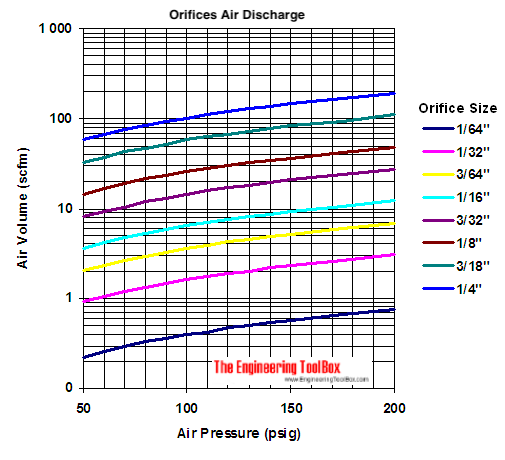

The diagram below indicates the the air leakage or air volume passing through orifices ranging 1/64 - 1/4 inches. For well rounded nozzles, multiply by 0.97. For sharp edged nozzles, multiply by 0.65.

orifice air volume leakage diagram
