Pressure and Temperature Chart of Ammonia - NH3

A temperature (oF) and pressure (psia, psig) chart for Saturated Ammonia - NH3

Anhydrous ammonia NH3

  • a colorless non-flammable liquefied gas
  • vapor lighter than air - 0.6 compared to air 1.0
  • ignition temperature 1204oF (vapor concentration between 15% and 28%)
  • corrodes galvanized metals, cast iron, copper, brass or copper alloys
  • weight of liquid ammonia 5.15 pounds per gallon (water weight 8.33 pounds per gallon)
  • boiling point liquid ammonia at atmospheric pressure -28oF
  • liquid ammonia expands to 850 times its liquid volume at atmospheric pressure

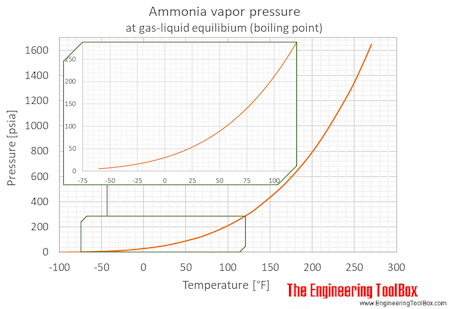

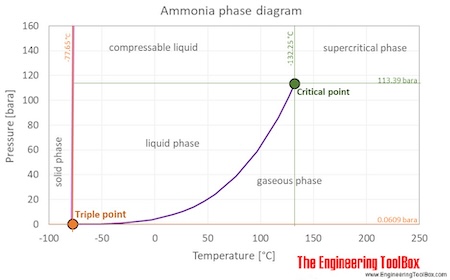

Ammonia Temperature Pressure Diagram

Boiling pressures of liquid ammonia at different temperatures are indicated in the diagram and charts below:

ammonia - NH3 - temperature and pressure chart - psi, degrees Fahrenheit





Temperature Pressure
oF psia inches Mercury (vacuum)
-60 5.6 18.6
-58 5.9 17.8
-57 6.1 17.4
-56 6.3 17.0
-55 6.5 16.6
-54 6.8 16.2
-53 7.0 15.7
-52 7.2 15.3
-51 7.4 14.8
-50 7.7 14.3
-49 7.9 13.8
-48 8.2 13.3
-47 8.4 12.8
-46 8.7 12.2
-45 9.0 11.7
-44 9.2 11.1
-43 9.5 10.6
-42 9.8 10.0
-41 10.1 9.3
-40 10.4 8.7
-39 10.7 8.1
-38 11.0 7.4
-37 11.4 6.8
-36 11.7 6.1
-35 12.1 5.4
-34 12.4 4.7
-33 12.8 3.9
-32 13.1 3.2
-31 13.5 2.4
-30 13.9 1.6
-29 14.3 0.8
psia psig
-28 14.7 0.0
-27 15.1 0.4
-26 15.6 0.8
-25 16.0 1.3
-24 16.4 1.7
-23 16.9 2.2
-22 17.3 2.6
-21 17.8 3.1
-20 18.3 3.6
-19 18.8 4.1
-18 19.3 4.6
-17 19.8 5.1
-16 20.3 5.6
-15 20.9 6.2
Temperature Pressure
oF psia psig
-14 21.4 6.7
-13 22.0 7.3
-12 22.6 7.9
-11 23.2 8.4
-10 23.7 9.0
-9 24.4 9.6
-8 25.0 10.3
-7 25.6 10.9
-6 26.3 11.6
-5 26.9 12.2
-4 27.6 12.9
-3 28.3 13.6
-2 29.0 14.3
-1 29.7 15.0
0 30.4 15.7
1 31.2 16.5
2 31.9 17.2
3 32.7 18.0
4 33.5 18.8
5 34.3 19.6
6 35.1 20.4
7 35.9 21.2
8 36.8 22.1
9 37.6 22.9
10 38.5 23.8
11 39.4 24.7
12 40.3 25.6
13 41.2 26.5
14 42.2 27.5
15 43.1 28.4
16 44.1 29.4
17 45.1 30.4
18 46.1 31.4
19 47.2 32.5
20 48.2 33.5
21 49.3 34.6
22 50.4 35.7
23 51.5 36.8
24 52.6 37.9
25 53.7 39.0
26 54.9 40.2
27 56.1 41.4
28 57.3 42.6
29 58.5 43.8
30 59.7 45.0
40 73.3 58.6
50 89.2 74.5
60 107.6 92.9
70 128.8 114.1
Temperature Pressure
oF psia psig
76 143.0 128.3
77 145.4 130.7
78 147.9 133.2
79 150.5 135.8
80 153.0 138.3
81 155.6 140.9
82 158.3 143.6
83 161.0 146.3
84 163.7 149.0
85 166.4 151.7
86 169.2 154.5
87 172.0 157.3
88 174.8 160.1
89 177.7 163.0
90 180.6 165.9
91 183.6 168.9
92 186.6 171.9
93 189.6 174.9
94 192.7 178.0
95 195.8 181.1
96 198.9 184.2
97 202.1 187.4
98 205.3 190.6
99 208.6 193.9
100 211.9 197.2
101 215.2 200.5
102 218.6 203.9
103 222.0 207.3
104 225.4 210.7
105 228.9 214.2
106 232.5 217.8
107 236.0 221.3
108 239.7 225.0
109 243.3 228.6
110 247.0 232.3
111 250.8 236.1
112 254.5 239.8
113 258.4 243.7
114 262.2 247.5
115 266.2 251.5
116 270.1 255.4
117 274.1 259.4
118 278.2 263.5
119 282.3 267.6
120 286.4 271.7

Note!

  • Between -60oF to -28oF the pressure values in the third column are represented in inches Mercury (vacuum).
